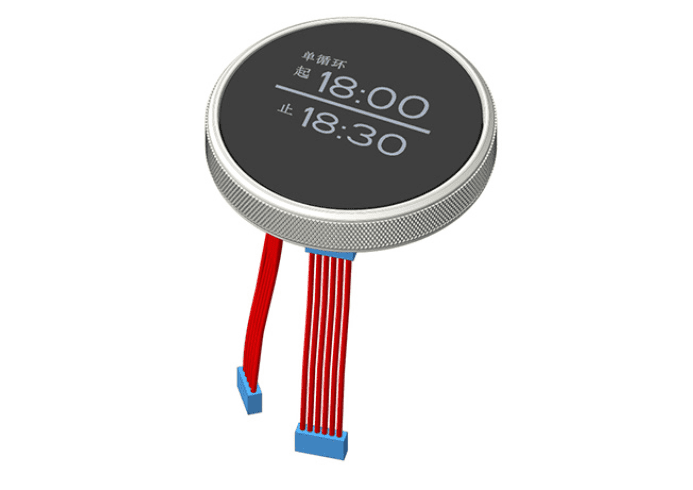

MD75 Encoder Module with OLED Screen Display SW

MD75 Encoder Module with OLED Screen Display
MOQ 2000Get Latest Price
Main Specifications
Dimension: 77mm;

Number of detent: 14;

Pulses: 14;

Working temperature: -20℃~60℃;

Rotational life: 30,000 cycles Min

Applications Washing machines and other household appliances;
Product Features A multi-functional module integrated with OLED, digital LED display and rotary encoder.

MECHANICAL CHARACTERISTIC
1. Rotational torque: 60±20mN.m

2. Total rotational angle: 360°

3. Number of detent: 14

ELECTRICAL CHARACTERISTIC
1. Insulation Resistance: 100MΩ

2. Dielectric Voltage: 1 Minute at AC 300V

3. Pulses: 14

ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
