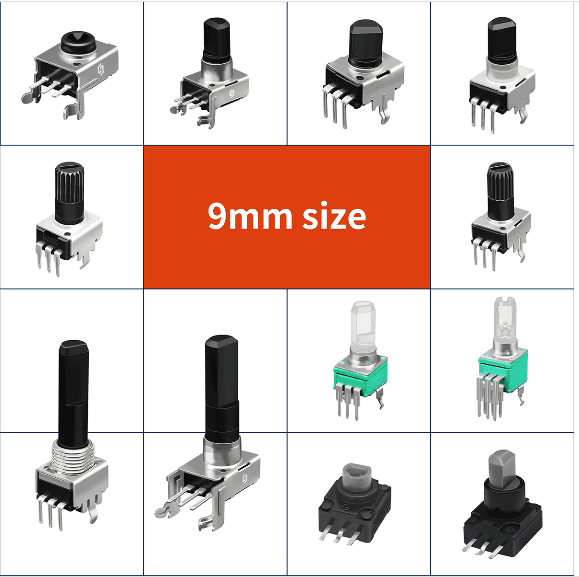

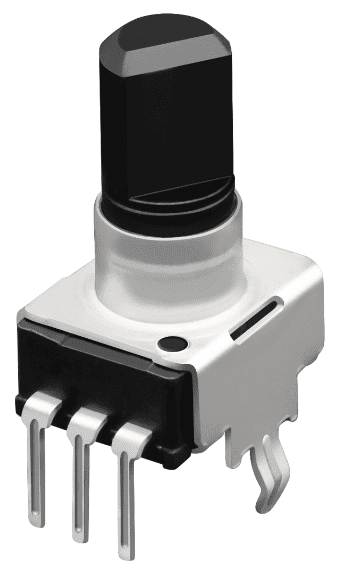

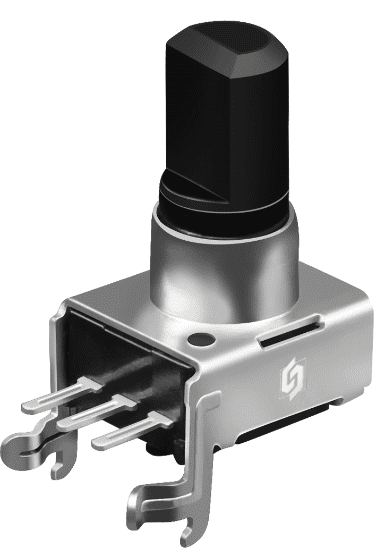

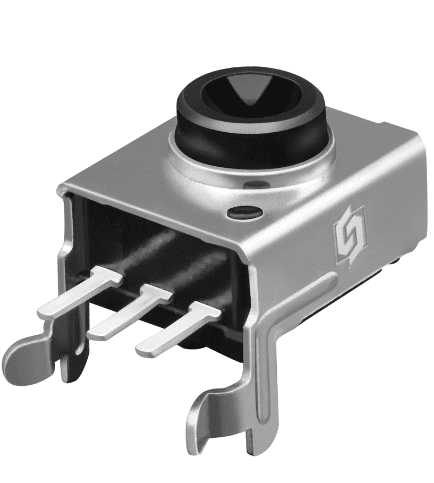

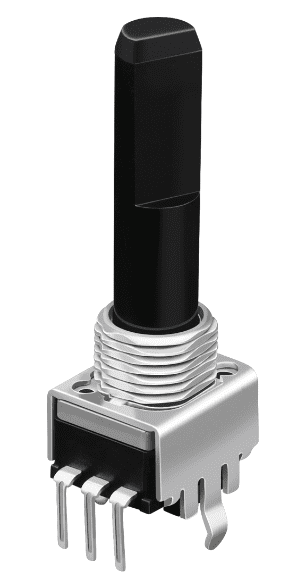

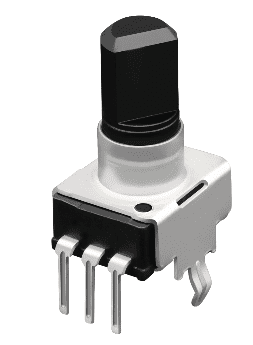

RA09 Rotary Potentiometers

RA09 Rotary Potentiometers
MOQ 2000Get Latest Price
Main Specifications
Total Resistance Error: ±20%;

Rotational angle: 280±10°/300±10°;

Rated power: 0.05W;

Operating temperature: -10℃ ~60℃;

Rotational life: 10,000 Min;

Applications Mixers, multi-coal audio amplifiers, home appliances and other electronic equipment
Product Features
Small size with stable performance;

Insulated shaft design;

Various mounting options to choose from.

Functions The main functions are to adjust the volume, pressure regulation, temperature regulation, dimming and other functions.
MECHANICAL CHARACTERISTIC
1. Rotational Torque: 10~100gf.cm

2. Total Rotational Angle: 280±10°/300±10°

3. Shaft Stop Strength: ≥3.5Kgf.cm

4. Shaft Wobble (mm p-p): 0.7*L/20 Max

ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ

2. Resistance Taper: A/B/C

3. Rated Power: 0.05W

4. Insulation Resistance: 100 MΩ 1 Min at DC 250V

5. Dielectric Voltage: 1 Minute at AC 250V

ENDURANCE CHARACTERISTIC
1. Rotational life: 10,000 cycles Min
